LUKOIL TERMINAL DE ALMACENAJE Y DISTRIBUCION

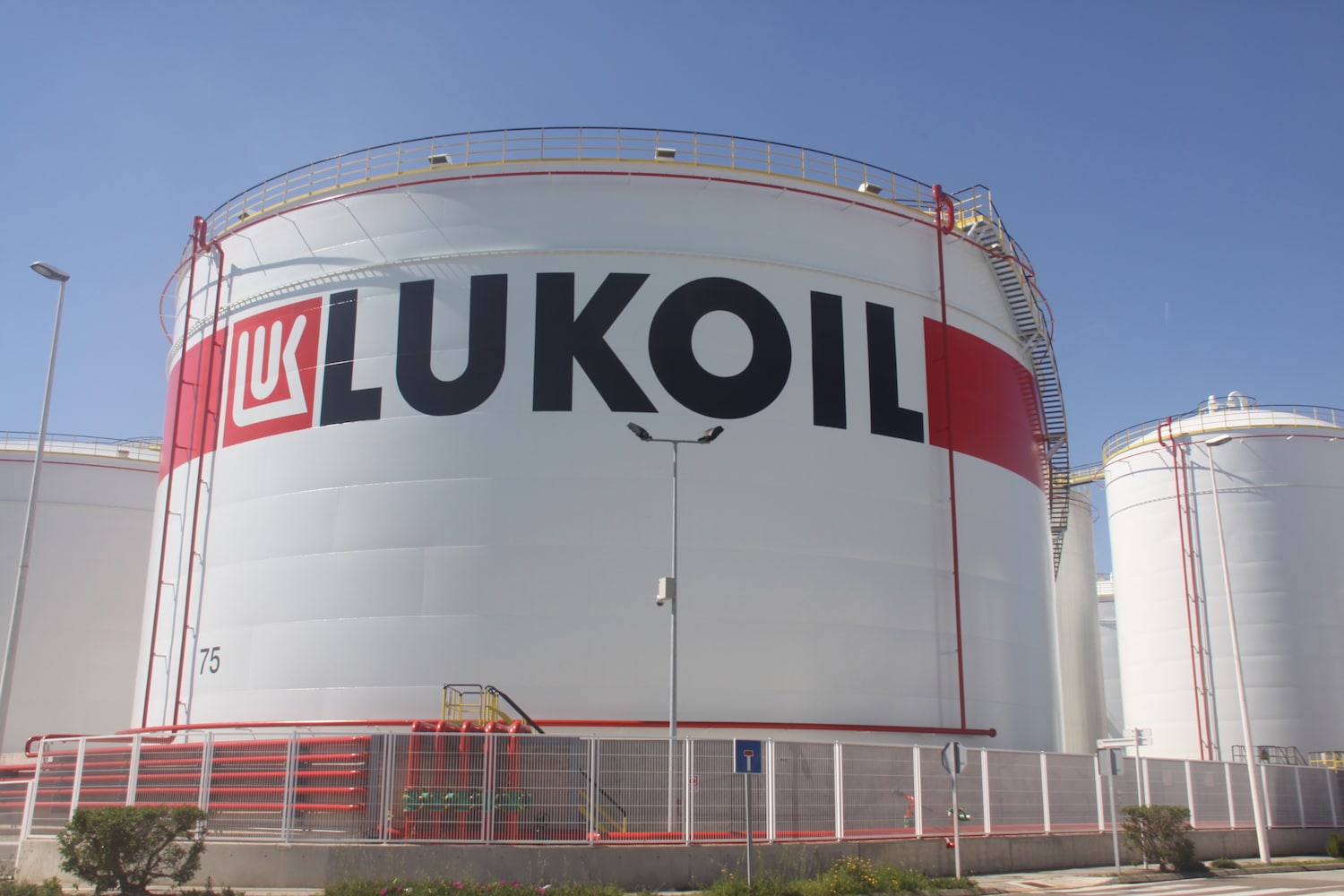

This is a terminal for storage and distribution of petrol and biofuel products located in the Port of Barcelona. The storage capacity is 360,000 m3, distributed in 12 tanks with a range of capacities of 6000 m3 to 40,000 m3. The installations carried out are the following:

ELECTRICITY

  • 25-kV reception and transformation centre and two 1250-kVA transformers
  • General low-voltage distribution panel
  • Engine manoeuvring panel
  • High-efficiency speed shifters with low harmonic IGBT technology for 400-kW pumps
  • Laying of trays and power cables for ATEX zones
  • Exterior lighting, tanks and auxiliary zones
  • Installation of the Water Processing Unit

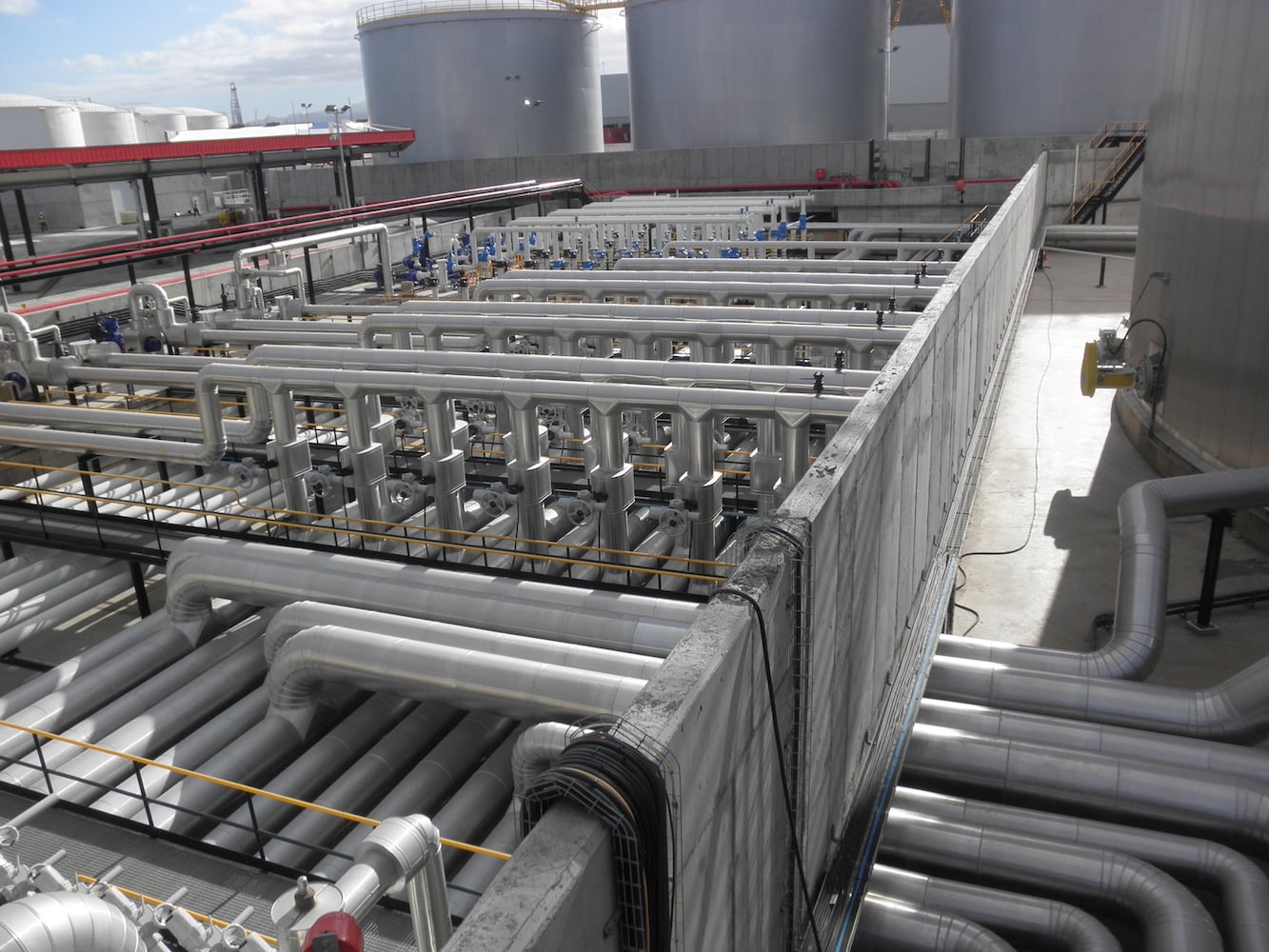

  • Supply and assembly of electrical tracing for biodiesel tanks and interior biodiesel pipes. Tracing of exterior lines to loading areas with long-line system

INSTRUMENTATION

  • Supply and assembly of Uninterruptable Power Supply (UPS) and distribution panel
  • Installation of the tank-level measuring system
  • Installation of the auxiliary instrumentation of the terminal
  • Laying of trays and power control cables for ATEX zones
  • Closed-circuit television and intercom and public address system

AUTOMATION AND CONTROL

  • Supply and assembly of the control panel with PLC and communications system

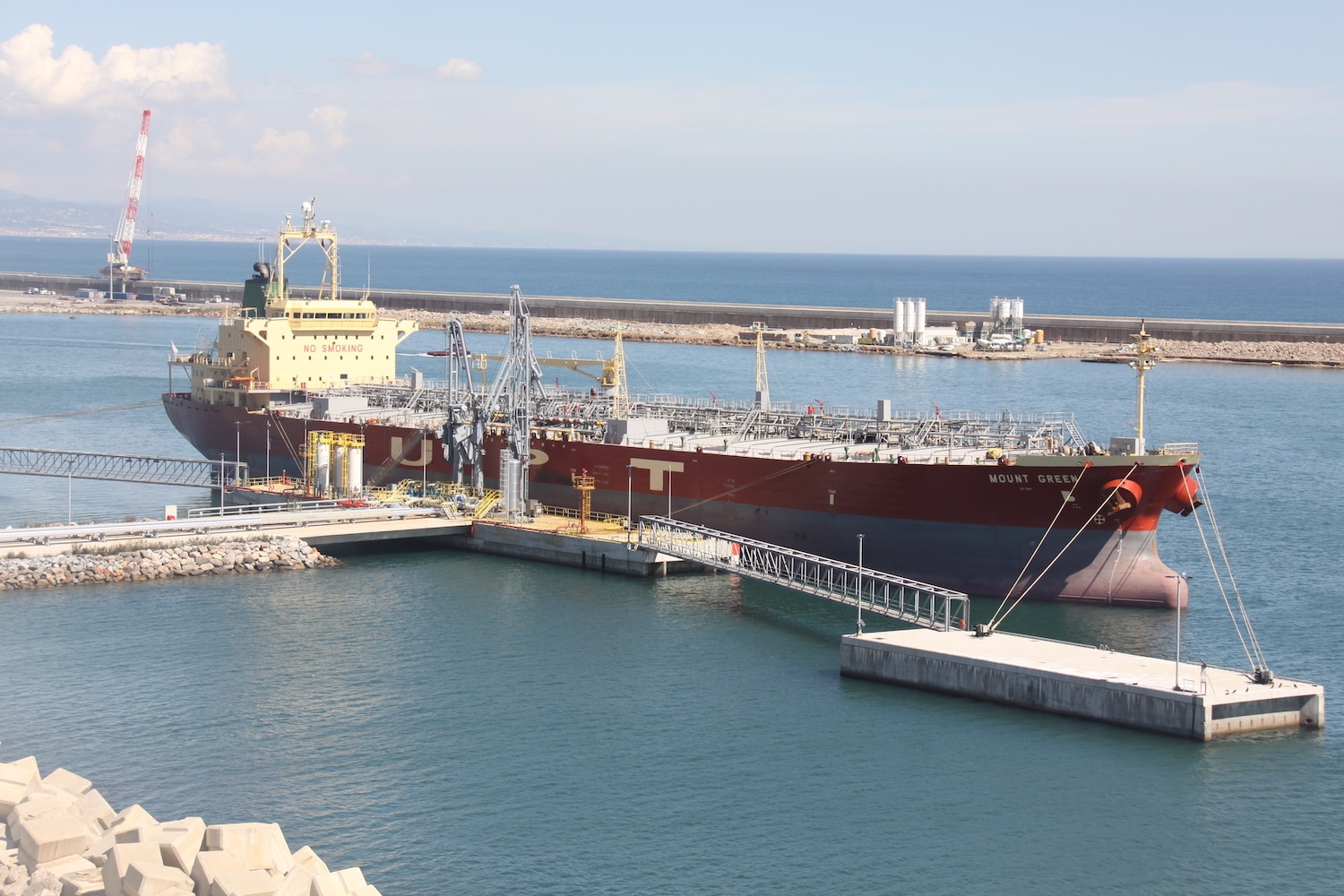

  • Development of the control software for the terminal, including the tank-level system, loading and offloading of vessels and product pumps
  • Development of the SCADA supervision software of the terminal
  • Development of the management software of the terminal, with the remote maintenance service for the control system
Category:
TANK STORAGE TERMINALS
Client:
Lukoil
